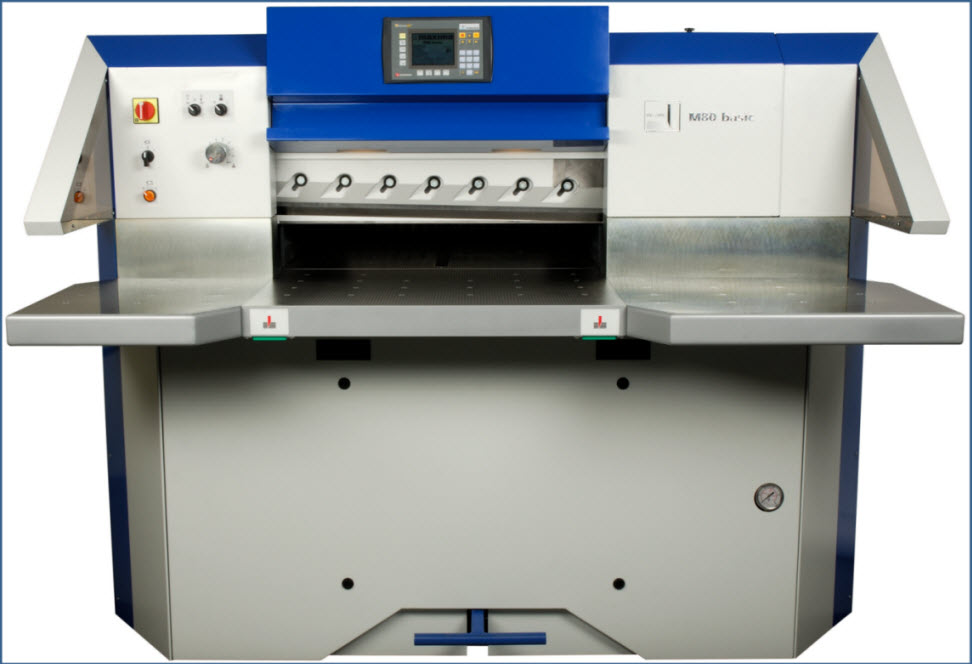

Maxima MS80

Características Principales y Accesorios estándar
Longitud de corte 800 mm (31.5 pulgs.)
Altura de corte máx. 110 mm (4.3 pulgs.)
Ancho de corte mín. 25 mm (1.0 pulg.)
Peso 1,450 kg (3,176 lbs)
Requerimientos eléctricos 3 x 220 V / 4.5 KW (trifásica, 220 V)
Indicador de medida (métrico e inglés)
• Corte en tiras
• Pantalla de lectura
• Indicador en la línea de corte
• Sistema de seguridad de ambas manos (bloqueo de corte)
• Bloqueo mecánico de la cuchilla en la posición de descanso
• Protección automática de la cuchilla en posición de descanso
• Mesa de aire con compresor incluido
• Partes mecánicas reforzadas
• Pisón hidráulico

Accesorios opcionales
• Barrera de seguridad con rayos infra-rojos
• Superficies de la mesa cromadas
• Sistema reciprocante de bola para el tornillo de avance
• Superficies de la mesa de alto acabado


The construction of the paper guillotines MAXIMA MS 80 is based on mechanical parts which were already verified and proved by the foregoing types. It is outstanding by its rugged construction, reliability, precision of the cut, easy operation, high operational safety and efficient design. The guillotines are specified for cutting of the paper, papercard and paperboard, as well as other technical materials such as veneer, leather, cork, rubber and plastic foils.
Technical advantages consist above all in the high operating productivity, easy operation and the low level of the noise.



All types of the machines are equipped with the air cushion for easy manipulation of the cut material. Even the reinforced type MS 80 BP are equipped with the digital indication and setting of the measure with the possibility of automatically cutting of the strips. All the types are equipped with the reinforced mechanical parts.

Type MS 80 PS is equipped with a control system which includes a free programmable automatic device with monochromatically display 8 x 40 types and with the possibility of creating of 999 cutting programmes with 10.000 cutting steps. The machine is working in the semi - automatic mode with the possibility of the creating and storing of the cutting programmes for repeated jobs.

The top of the range model MS 80 TSE (Colour touch-screen) is able to create 800 programmes in 4 sections and also has the facility for fully automatic programmed cutting of standard sizes.

Model MS 80 TSE is as standard equipped with infrared safety guards to the front table and duplicated hydraulic control systems, chromium plated table and fully comply with the European "GS" and "CE" safety certification requirements.




The new large-size TFT colour touch-screen ensures enhanced operator comfort through clearly readable display, thus increasing the operator's productivity. The new control programme underlying the touch-screen provides you with a powerful tool for high cutting productivity and quality.
The arrangement of control functions in all screens is clear and logical, making the control of the programme very intuitive and easily accessible to the operator through the interactive control system.
SW features:
Entering dimensions in cm, mm, inches (in fractions or decimal notation). Entering programme name using an alpha-numeric keyboard - up to 16 characters. 800 programmes in 4 blocks.
Functions - programming clamping pressure for different cutting cycles, clamping without cutting, programmable clamping without cutting, communication in 8 languages (Czech, English, Russian, German, Spanish, French, Polish, Hungarian), machine lubrication prompts, automated programming through cutting, programme protection by password, immediate cutting cycle interruption - switching to manual mode and return, visualisation of cut lines in graphic mode using simulation.
Operator specific programmes - e.g. different programmes for morning and afternoon shifts.
Auto-diagnostic features in the 'Service' mode, indicating machine status for the prevention of operator errors. 'Help' function with operating instructions.
Automated creation of cutting programmes using pre-defined A0-B5 or customized formats and many other features.
,
